Bartolone Racing 40cc Reed Case Motor

$1,600.00
SKU: BB942

Out of Stock

ABOUT THIS PRODUCT:

Bartolone Racing 40cc Reed Case Motor (Fits VEKTA, Losi 5IVE-T, and HPI Baja) Payment Required with PayPal

About

About

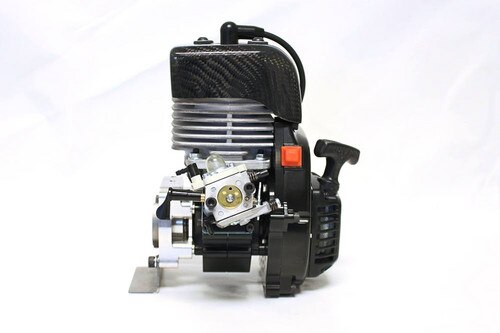

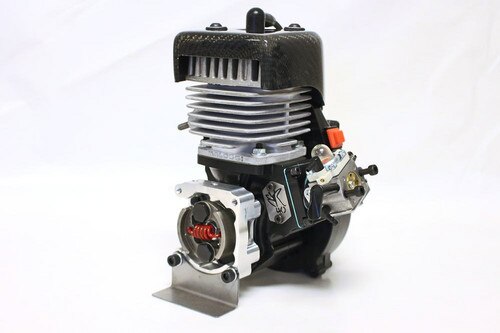

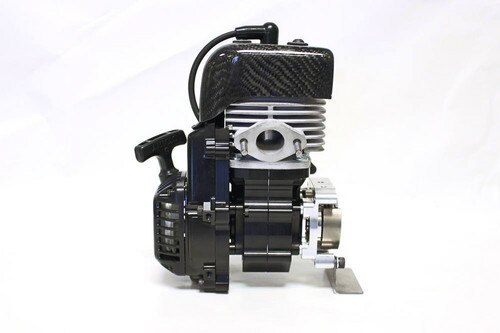

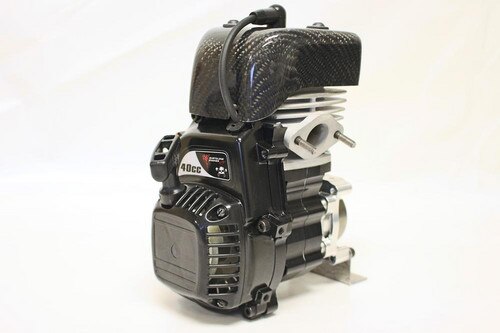

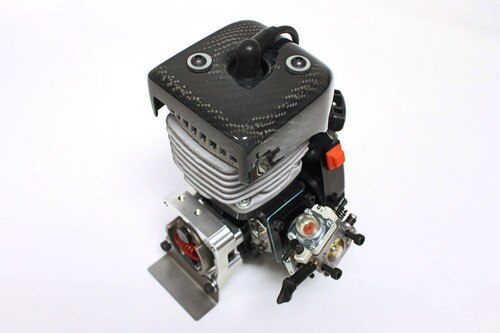

Now available for big block enthusiasts is the Bartolone Racing 40cc reed case engine! When designing this engine Chris had a single focus on making the best and most reliable big block available. To do this he started with an Italian cylinder kit from Malossi and Malossi/Polini crankshaft. These are combined with an all USA made crankcase and reed valve. Anodized in a stealthy black finish this case offers the popular breather holes for the flywheel found on other Bartolone reed cases. These feed a standard finned flywheel. The fanned flywheel provides cooling by throwing the air up over the cylinder through a hand laid polished carbon engine shroud. Pride in the craftsmanship is shown at every angle.

A machined vented clutch housing is included to fit all applications from Losi 5IVE-T, HPI Baja and Kraken VEKTA.5 Buggy and VEKTA.5 TT. A 54mm FS Racing clutch delivers power to the clutch bell. A genuine Walbro WT-1107 carb feeds the engine which makes for easy starting and tuning with excellent performance. A Delrin machined insulator block keeps heat from the carb.

These are high performance engines, these are not for amateur or beginner modelers. They will require an in depth understanding of important setup skills involving assembly, linkage adjustment, breaking-in and tuning. It is critical that you maintain this engine by running the correct fuel ratio and keeping a clean air filter. Always operate your model responsibly and follow the included instructions.

The Bartolone 40cc engine and associated tuned pipes are exempt from coupon codes. Payment for this engine is required via PayPal or bank wire transfer.

Download Instructions Here
