CASTLE CREATIONS MOTOR COOLING FAN, 2028 SERIES

$13.99
SKU: CSE011015300

ABOUT THIS PRODUCT:

CASTLE CREATIONS MOTOR COOLING FAN, 2028 SERIES

About

About

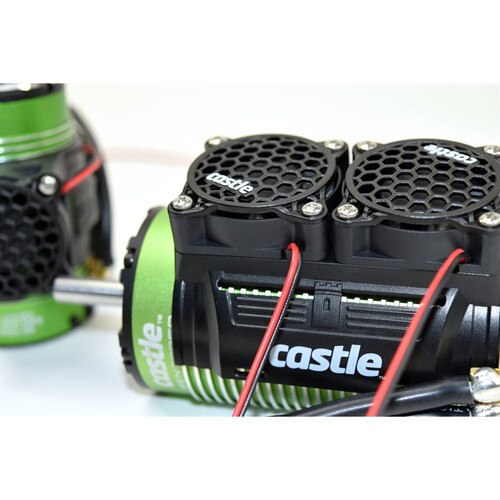

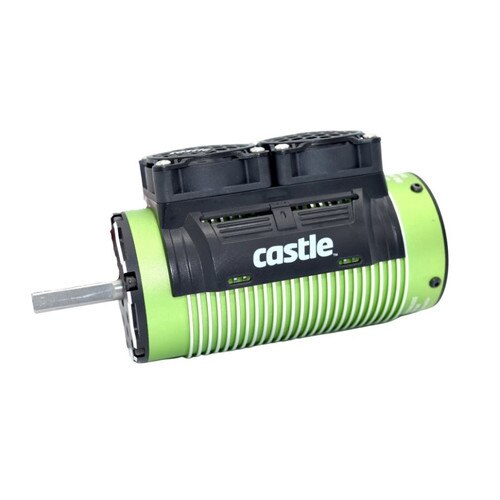

CC Blower plugs directly into your receiver for power and helps maintain motor temperature! Our newly redesign Motor Blower Fans make it easy to mount a cooling fan directly to Castle 2028 (or 56mm diameter) motors. Installation is simple using just zip ties.

The new design also allows taller, optional 40mm fans to be attached with longer mounting screws.

Fits on motors with outside diameters of 56mm.

Designed for use with:
060-0054-00    2028-800Kv Brushless Sensored Motor
060-0087-00    2028-1100Kv Brushless Sensored Motor

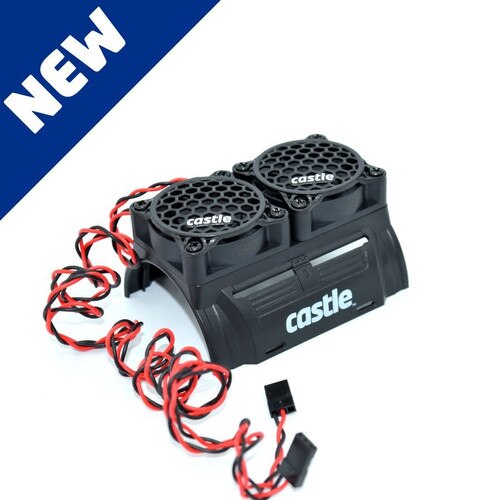

Includes (2) 40mm fan, shrouds and two (2) black zip ties.

For installation instructions click here.

Technical Specs:
Input Max Voltage:    8.4v
Maximum RPM:    10,000
Fan Size    40mm x 40mm x 7mm (Qty 2)
Waterproof:    No, remove before exposing fans to moisture.
*This product is for supplemental cooling purposes only and should not be used to push the motor beyond its recommended limits or cover up heating issues caused by your setup. Temperature drop will vary depending on setup.
