Dynamite Electronic Switch (DYNR0100)

$29.99
SKU: DYNR0100

ABOUT THIS PRODUCT:

Dynamite Electronic Switch (DYNR0100)

About

About

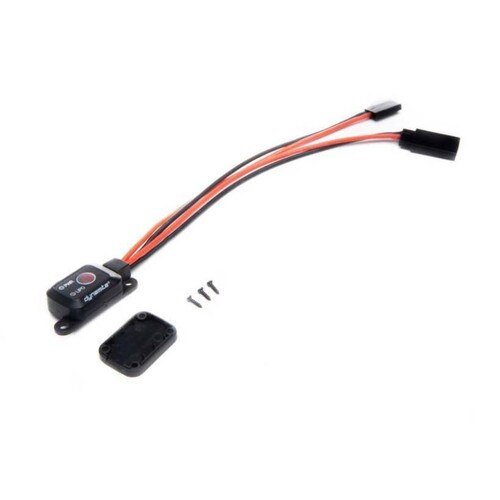

This small, MCU-controlled POWER SWITCH uses a simple push button to eliminate problems associated with the intermittent contact of an ordinary mechanical switch. The sealed plastic unit can be mounted to your model’s transponder mount or another easy-to-reach spot using double sided tape. An additional bottom mount is included. The switch features a LiPo mode, which will auto detect low LiPo voltage and cut off power to protect your LiPo from over discharging. If other safeguards are in place, this can be turned off when using a NiMH/NiCd battery. The power switch also indicates remaining battery capacity.

SPECIFICATIONS DYNR0100 Current 10A Battery Mode NiMH/NiCd and LiPo Low Voltage Protection 6.2V (LiPo mode only) Weight <7g Operating Temperature 0–50°C Input Voltage 4–12V

Instruction manual can be downloaded HERE
