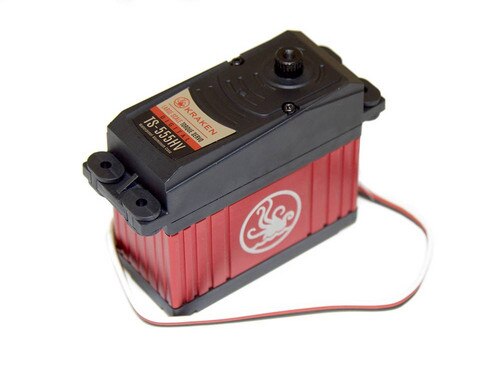

Kraken VEKTA.5 Kraken TS-555HV Digital Torque Servo
TS-555HV is designed and manufactured specifically for the Kraken VEKTA.5. This torque servo provides adequate needs to power the KV5. It may also be used for a dual steering set-up with optional dual servo braket kit (KV2240). These servos have now have the updated 15T coarse spline output to match the industry standard for large scale servos and will work with many aftermarket horns (DDM/Dynamite/Savox/Losi/Kraken 15T horn etc)
Operation Voltage 6V-7.4V
Torque 555 oz/in @6V, 694 oz/in @7.V using 2S LIPO
Speed 0.19sec/60 at 6V/0.17/60@ 7.4V
Rated Current 3500mA @6V/4500mA@7.4V
Continuos Current 600mA @6V/ 700mA @7.4V
Neutral Point 1500us
Dimensions 82x30x56.5mm
Weight 7 oz
Gears Type - Metal
Wiring White - Signal
Wiring Red - 6V-7.4V
Wiring Black - Ground
Connector Type - Futaba or JR
Ingress Protection - IPX7
Enclosure Aluminum Anodized Case (Waterproof)
