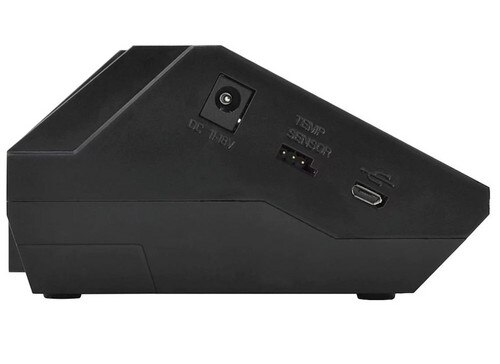

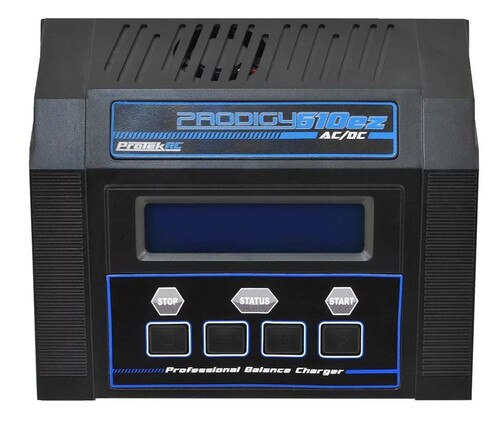

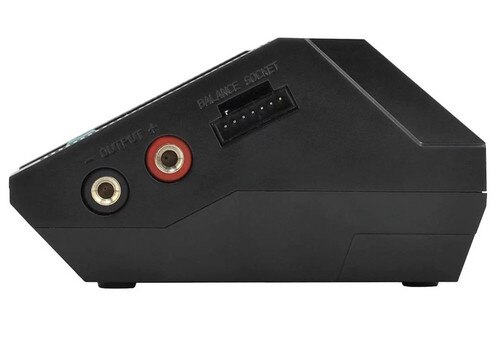

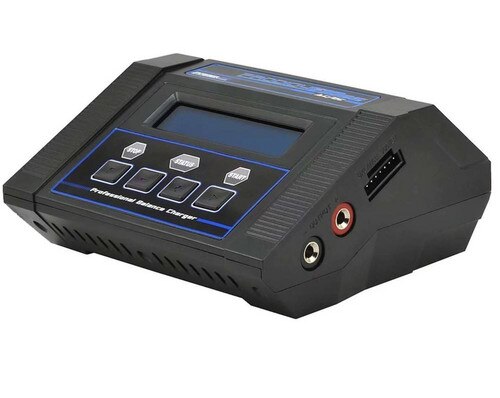

The ProTek R/C "Prodigy 610ez AC/DC" LiHV/LiPo/LiFe/NiMH AC/DC Battery Charger is a single port AC/DC charger that can handle 6S packs, is capable of 10 amp charge rates, worldwide 100V/220V voltage versatility, with 100 Watts of power... the next generation of Prodigy has arrived. Hi-Voltage Capable This charger features a Hi-Voltage LiHV mode that allows you to safely charge Hi-Voltage LiHV capable batteries. You can adjust the charging end voltage of this mode up to 4.40V per cell, which is considerably higher than 4.20V per cell of an ordinary LiPo battery. Charging at this higher end voltage requires a Hi-Voltage LiHV capable battery, but the power gains are significant to the overall punch and power for the R/C model. But please note: battery voltages exceeding 4.20V per cell is prohibited from sanctioned racing rules, such as ROAR, IFMAR, etc. Dual Power Input The power source can be 11-18V DC input or a 100-240V AC source. With a builtin power supply, users can directly connect the AC power cord to the main AC input. The power supply can accept AC power from all over the world without the worry of damage. Features: Single Channel Digital AC/DC Balance Charger Maximum 10A Charge Current, up to 100W Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V Supports up to 6S Lithium & 15 Cell Nickel Battery Packs Lithium, Nickel & Lead Acid Compatible Multiple Safety Functions Multiple Charge Modes Back-Light Screen Small & Lightweight Portable Design Measure the Internal Resistance of Battery Pack Specifications: AC Input Voltage: 100V-240V DC Input Voltage: 11V-18V Chemistry: LiPo, Li-Ion, LiFe, LiHV, NiMH, NiCd, Pb Cell Count: LiPo/Li-Ion/LiFe/LiHV: 1-6S; NiMH/NiCd: 1-15 cells; Pb: 2-24V Voltage Cutoff (per cell): LiPo: 4.18-4.22V; Li-Ion: 4.18-4.20V; LiFe: 3.68-3.8V; LiHV: 4.30-4.40V Display: LCD; blue back light (non-touch) Dimensions: 130x115x61mm Charge Current: 0.1A-10A Charge Power: 100W max. Balance Current: 400mA/cell Cooling System: Fan Weight: 380g Safety Timer: 1-720min or off Discharge Current: 0.1A-2.0A Discharge Power: 5W max. Memory: 10 different profiles Includes: (1) Prodigy Prodigy 610ez AC/DC Charger (1) T-Style Charge Lead (1) DC Input Wire (1) Balance Board (1) Instructions How To Calculate Your Charging Needs To determine if this charger is suitable for your application, you must perform this calculation to determine the maximum amp rate the charger can supply. Divide the Watts of the charger by the Voltage of the battery pack. This will tell you the maximum amp rate the charger can deliver (Watts / Voltage = Amps). For example, if using the Touch 625 AC and a 6S LiPo battery, you would divide 200 Watts by 22.2 Volts to realize a 9 Amp charge rate. This means that the charger can supply a maximum of 9 amps to a 22.2 Volt 6S battery. This amp rate will gradually reduce as the battery voltage increases during the charge cycle. LiPo Battery & Charger Warnings: 1) DO NOT leave the battery in your model when charging 2) DO NOT leave unattended when charging 3) ALWAYS balance charge the battery 4) ALWAYS use a LiPo charging bag 5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCd only chargers WILL NOT WORK!) 6) YOU MUST not over discharge the Li-Poly battery pack 7) READ & UNDERSTAND the instructions carefully before operating this battery WARNING NOTE: This charger is not compatible with Traxxas iD equipped LiPo Batteries; only Traxxas iD chargers properly charge Traxxas iD LiPo Batteries. NEVER, UNDER ANY CIRCUMSTANCES, use this charger to charge a Traxxas iD equipped LiPo Battery.
