Slitzell Concepts Cylinder Reed Kit for Zenoah G62 Engine

SLITZELL CONCEPTS G62 CYLINDER REED KIT

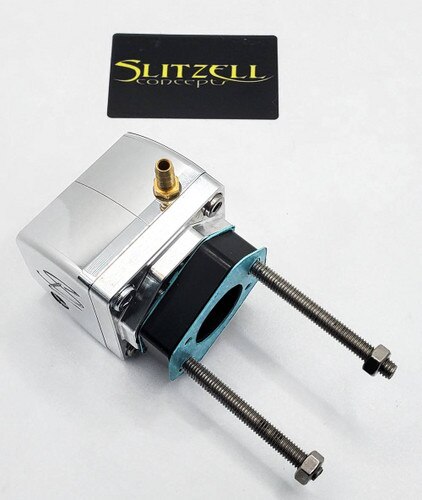

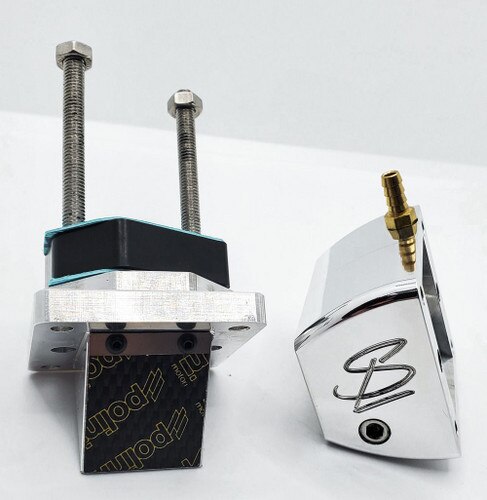

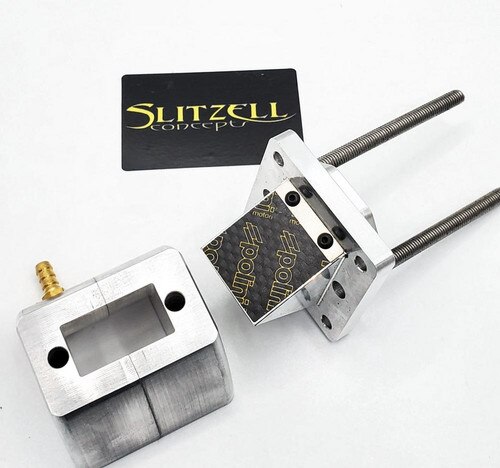

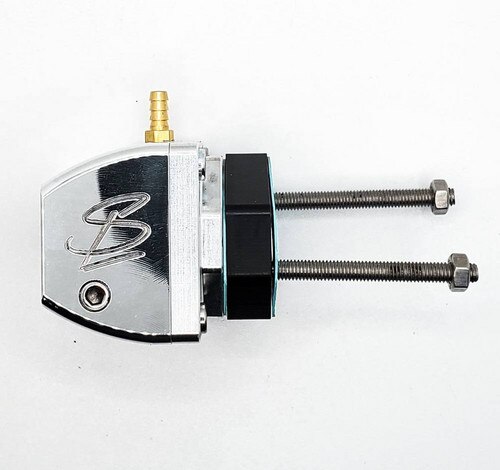

The Slitzell Concepts G62 bolt-on reed kit allows the user to convert the Zenoah® G62 to an intake mounted reed valve system. Reed valves increase performance throughout the entire RPM range, especially in lower RPM’s. The kit comes standard with Polini® yellow carbon fiber reed petals. Reed housings are designed to pulse the carburetor fuel pump externally. This allows the user to easily interchange Walbro® HDA and WJ style large bore carburetors. Reed housings come exclusively engraved. The Slitzell Concepts G62 bolt-on reed kit comes with the following components:

-         Engraved reed cage housing

-         Reed cage, carbon fiber petals and retainers

-         Composite carburetor insulator and all gaskets.

-         Necessary hardware for installation

NOTE:

- It is highly recommended to “reed port” the G62 cylinder to achieve the reed valve’s maximum potential. An experienced porter should be considered if user is not capable of performing work.

-  External fuel pump pulse modification is required to carburetor of choice. If user is unable to perform this modification, an experienced engine builder should perform this modification.
