Turtle Racing V2 HD Clutch System 1251 1252 1253
Available pinion options:
16T or 17T pinion gear for use with the stock 57T spur gear
18T Pinion gear for use with 56T spur
19T pinion gear for use with 55T spur
20T pinion gear for use with 54T spur.
Pinion Gears are sold separately, available in the "You May Also Like" Parts Listing at the Bottom of this Page.
Available in Raw Silver, Black, and GunMetal-Fits all HPI Baja Models (5B, 5T, 5SC)

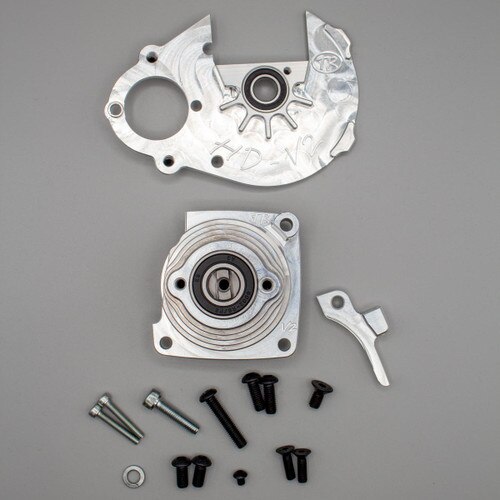

Includes-V2 Enclosed Carrier, V2-1pc Gear Plate, Trans Plate mount, 1pc. Clutch Bell, Team FastEddy Bearings and Hardware.

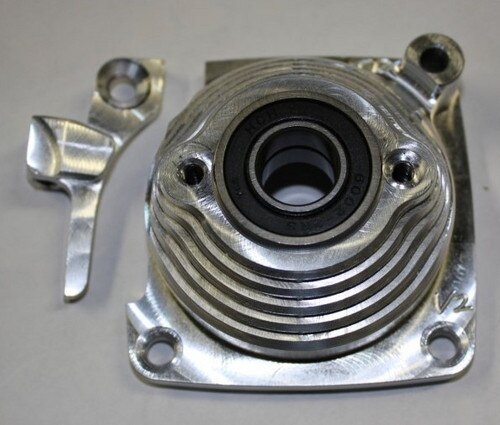

New Cooling fins- Runs average of 60% cooler than ANY carrier. Lower temps will provide increased clutch shoe and bearing life.
Vented to allow hot gasses and dust to escape, this prevents gasses and dust from being forced into crank bearings and no dirt gets in.
Trans plate mount and carrier are now separate, this makes carrier easy on-off for maintenance of clutch or bearings. As easy to access as an open carrier. They are a perfect match with each other so no dirt can enter the clutch area.
V2 1pc Gear Plate-We were first to make them, we are the first to Improve them.
We added a boss to the gear plate on the backside/ where the front hole mounts to carrier to increase increased strength around the mounting hole.
Gear Cover “screw on” mounts built in-no more plastic pins/hard to get at clips. Throw your plastic pins away and forget about them. No more lost gear covers, no more breaking plastic pins.
Tabs on back of V2 Gear Plate stop gear cover from being pushed against spur gear.
TR Part #'s 1251 1252 1253
Made in USA with quality and pride.
6061 Billet Aluminum CNC machined in house by Turtle Racing.
Check out our New Losi 5ive products too!
Stock Pinions DO NOT work with the TR Clutch System, if you do not have a TR pinion please order with the system
Click here for installation instructions.Click here for removal (uninstall) instructions.
