| Thread | M6 |
| Compression | |
| Capacity per Mount | 50 lbs. |
| Deflection @ Maximum Capacity | 0.06" |
| Shear | |
| Capacity per Mount | 15 lbs. |
| Deflection @ Maximum Capacity | 0.10" |
| Height (A) | 3/4" |
| Width (B) | 1" |
| Thread | |
| Length (C) | 1/2" |
| Depth (D) | 3/16" |

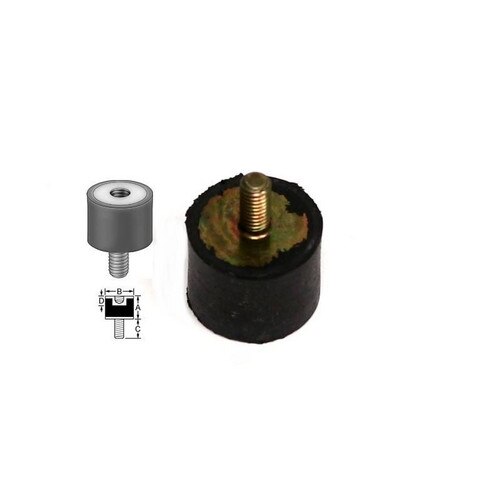

| Additional Specifications | Style 2—Male Threaded Stud on One End; Female Threaded Insert on One End |
| Neoprene | |
| Metric Steel Stud and Insert | |
| RoHS | Compliant |
Diminish vibration, shock, and noise in compression and shear load applications. Mounts have two threaded studs and/or inserts that are sandwiched between black natural rubber or neoprene. Durometer is 50A, unless noted. Neoprene has good resistance to weather and acids; moderate resistance to oils. Temperature range is 10° to 180° F.
