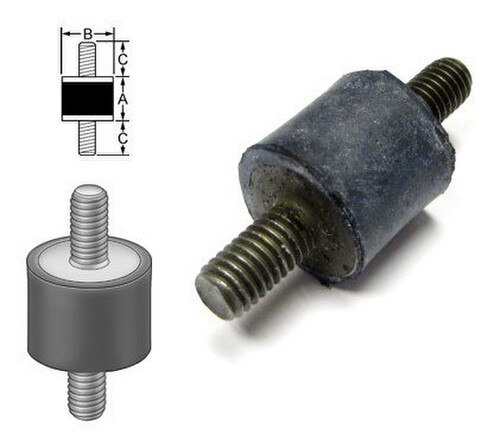

Damping Sandwich Mount 5/8 x 5/8
This is a replacement sandwich mount (rubber anchor) for use with Bartolone pipes, and the DDM Dominator DBXL pipe. Can also be used in other applications.
This is a replacement sandwich mount (rubber anchor) for use with Bartolone pipes, and the DDM Dominator DBXL pipe. Can also be used in other applications.
| Thread Size | M6 |
| Compression | |
| Capacity per Mount | 31 lbs. |
| Deflection @ Maximum Capacity | 0.07" |
| Shear | |
| Capacity per Mount | 4.5 lbs. |
| Deflection @ Maximum Capacity | 0.06" |
| Height (A) | 5/8" |
| Width (B) | 5/8" |
| Thread Length (C) | 1/2" |
| Additional Specifications | Style 1—Male Threaded Stud on Each End |
| Natural Rubber | |
| Metric Steel Studs | |
| RoHS | Compliant |
Diminish vibration, shock, and noise in compression and shear load applications.Mounts have two threaded studs and/or inserts that are sandwiched between black natural rubber or neoprene. Durometer is 50A, unless noted.
Natural rubber has superior resistance to tears and abrasion as well as good flexibility in cold temperatures. Temperature range is -10° to 150° F.
