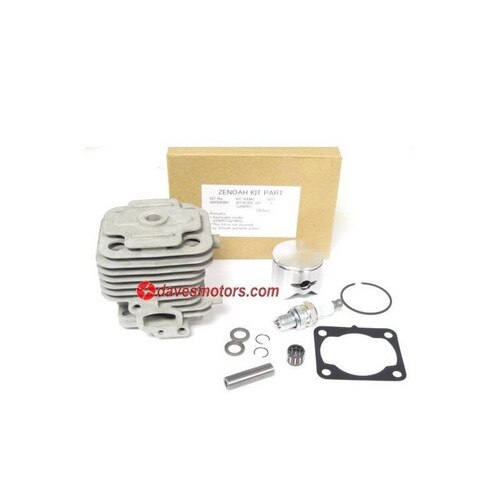

These 36mm top end kits are designed to be used with a +2mm stroker crank (30.5cc)
OBR has completed the following work on these kits:

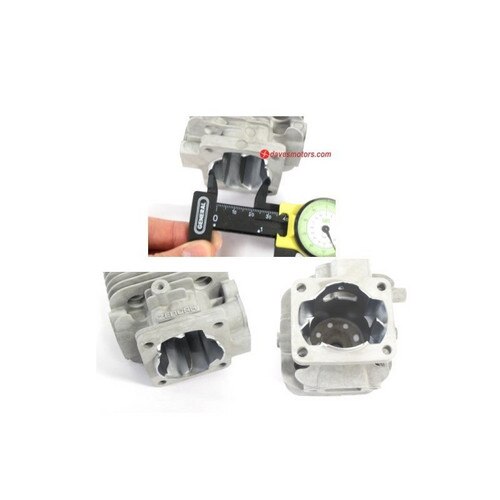

CNC ported and hand finished
All ports resurfaced and sanded
Exhaust duration/timing increased and port widened
Eyebrows cut on intake side transfer ports
Piston relived to prevent seizing at high operating tempuratures
Intake skirt on the piston is cut to increase intake duration/timing
Compression set for 91-95 octane fuel. Running race fuel can cause detonation and damage to the top end.
Squish band is cut to accept a +2mm stroker crank without stacking gaskets. The stock cylinder gasket needs to be used. Running a thinner gasket or no gasket at all will raise compression too high and/or cause the piston to hit the combustion chamber
Compression set for 91-95 octane fuel. Running race fuel can cause detonation and damage to the top end.
Hemispherical dome is cut to improve power
