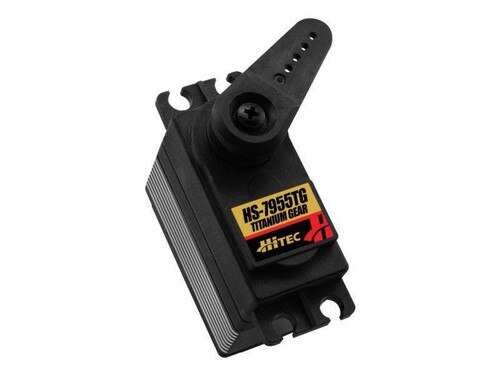

Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.
This is a "standard" sized servo and would be considered a throttle servo for models like the HPI Baja and FG models.
This is a "standard" sized servo and would be considered a throttle servo for models like the HPI Baja and FG models.
HS-7955TG Servo Specifications
Performance Specifications | |
Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
Speed (Second @ 60°) | 0.19 ~ 0.15 |
Maximum Torque Range oz. / in. | 250 ~ 333 |
Maximum Torque Range kg. / cm. | 18.0 ~ 24.0 |
Current Draw at Idle | 9 mA |
No Load Operating Current Draw | 300 mA |
Stall Current Draw | 4,200 mA |
Dead Band Width | 1 µs |
Physical Specifications | |

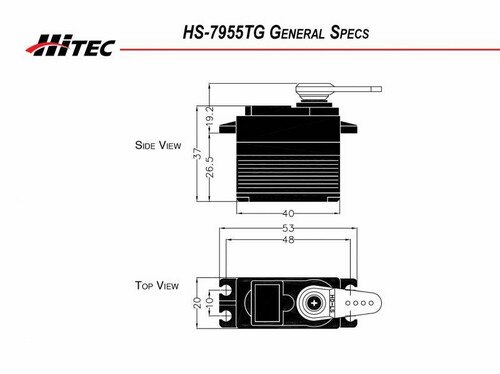

Dimensions (Inches) | 1.57 x 0.78 x 1.45 |
Dimensions (Metric) | 40.0 x 20.0 x 37.0 |

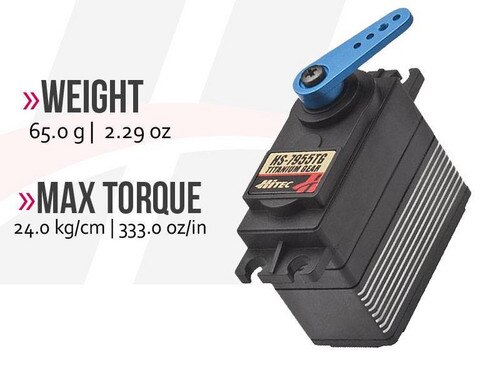

Weight (Ounces) | 2.29 |
Weight (Gram) | 65.0 |
Circuit Type | G2 Programable Digital |
Motor Type | Coreless Metal Brush |
Gear Material | Titanium |
Bearing Type | Dual Ball Bearing |
Output Shaft (type / Ømm) | Standard 24 |
Case Material | Plastic / Aluminum |
Dust / Water Resistance | Splash Proof |
Connector Gauge (AWG) / Strand Count | 22 / 60 |
Radio Control Applications | |
Parkflyer | N / A |
Sport Plane | 30 - 40% |
Sailplane | 2 meters and up |
3D Performance | 30 - 40% |
Scale | 30 - 40% |
Electric Helicopter | 700mm and up |
Gas Helicopter | 90+ Class |
On Road | 1/8th |
Monster Truck | 1/8th |
Buggies | 1/8th |
Truggies | 1/8th |
Short Course / Truck | 1/8th |
Crawlers | N / A |
Sail Boat | = >1M & Scale |
Power Boat | 1/10th |
