D-840WP 32-Bit, Multi Purpose, Waterproof, Steel Gear Servo w/Free DDM Alloy Horn

$114.00
SKU: HT840

ABOUT THIS PRODUCT:

D-840WP 32-Bit, Multi Purpose, Waterproof, Steel Gear Servo w/Free DDM Alloy Horn

About

About

D-840WP 32-Bit, Multi Purpose, Waterproof, Steel Gear Servo w/Free DDM Alloy Horn, Hitec Part No 36840


Product Description

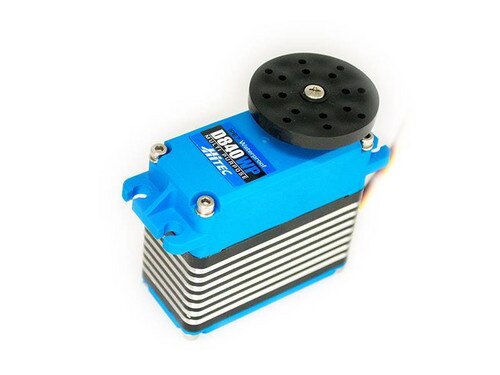

The steel D-840WP is part of our D-Series dynamo servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 15-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.



Ideal for applications like the Losi 5IVE, there will be slight modifications needed to install this servo. The case is slightly bigger than the original Spektrum/Losi branded unit and you will need to slightly enlarge the opening in the radio box. This servo is also a little taller and will require some M3 sized spacers underneath the servo mounting tabs. Your application may require other slight modifications to fit.

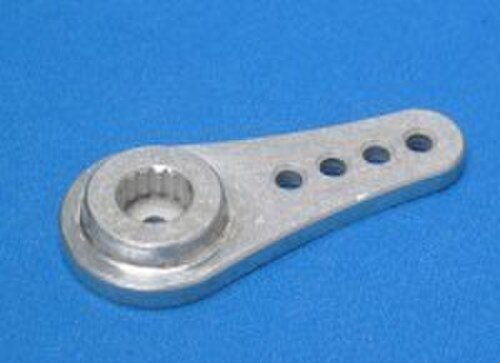

FREE DDM Aluminum Servo Horn Included!
Note: If you would prefer the DDM "double-sided" servo horn instead of the single-sided one, we can do that for you. Simply email us at sales@davesmotors.com as soon as you place your order (give us your order number and name), and we can make that change for you.

Specifications
Motor Type: Coreless Bearing
Type: Dual Ball Bearing
Speed (4.8V / 6.0V / 7.4V): 0.17 / 0.14 / 0.11 sec/60º
Torque oz-in (4.8V / 6.0V / 7.4V): 264 / 333 / 417 oz-in
Torque kg-cm (4.8V / 6.0V / 7.4V): 19.0 / 24.0 / 30.0 kg-cm
Size in Inches: 2.60 x 1.26 x 2.44 in
Size in Millimeters: 66.0 x 32.0 x 62.0 mm
Weight oz: 8.0 oz
Weight g: 227 g
