This is the HS-755MG Quarter Scale Metal Geared
Dual Ball Bearing Servo from Hitec.
FEATURES: Metal geared
Dual ball bearing output spline
Water and dust tight
Designed for use in large models

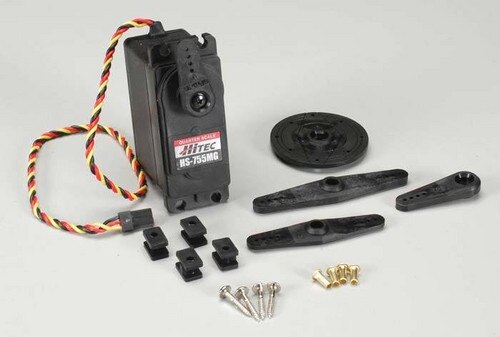

INCLUDES: One HS-755MG giant dual BB servo with Hitec/JR/Z tupe connector
One servo accessory package containing:
One 1" (26mm) single arm servo horn(pre-installed on servo)
One 1.3" (33mm) single arm servo horn
One 2.3" (58mm) dual arm servo horn
One 1.7" (43mm) diameter servo wheel
One 2.8" (71mm) dual arm servo horn
Four brass eyelets
Four servo mounting screws
Four rubber grommets
REQUIRES: Installation
SPECS: Length: 2.32" (59mm)
Width: 1.14" (29mm)
Height: 1.96" (50mm)
Weight: 4.12oz (117g)
Speed: .28 sec/60° @ 4.8V, .23 sec/60° @ 6V
Torque: 166.64 oz in (12kg.cm) @ 4.8V, 199.97 oz in (14.4kg.cm) @ 6V
