Kraken RC SX-5 "Sidewinder" Sand Rail Conversion Kit for HPI Baja 5B/5T/5SC

SKU: TR623


Kraken RC SX-5 "Sidewinder" Sand Rail Conversion Kit for HPI Baja 5B/5T/5SC & Kraken VESLA.5



Sidewinder SX5 Sand Rail Cage Kit for HPI Baja 5B/5T/5SC. Also fits Kraken VESLA.5!

The Sidewinder X5 roll cage is a legend amongst HPI Baja enthusiasts made famous by Otaka0706. With it's striking Shelby racing stripes, it has garnered a great deal of attention on the internet. Seen by few and envious by many, the SX5 Sidewinder is an exquisite kit and a sight to behold! With it's distinct racing lines and aggressive front end looks, the SX5 brings True Scale Sand Rail realism to any HPI Baja. Sold as a kit, it leaves you with unlimited imagination and possibilities to make the design truly yours. The Sidewinder X5 is a legend reborn and made possible only by Kraken RC!

Note: Prototype as shown. Kit comes unpainted with clear Lexan panels with overspray film.

• Direct bolt on to HPI Baja 5b, 5SC and 5T
• True scale Sand Rail conversion kit
• Easy and quick roll cage installation
• Heavy duty clear Lexan panels for unlimited customization
• Super Tough polymer
• Modular cages for easy and fast replacements
What’s in the box:

• 3 Modular Roll Cages* - DuraCage™ Technology

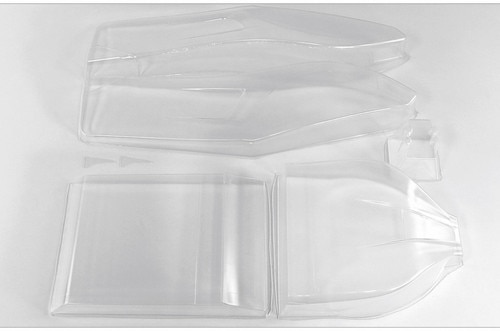

• Heavy Duty Clear Lexan Body Kit

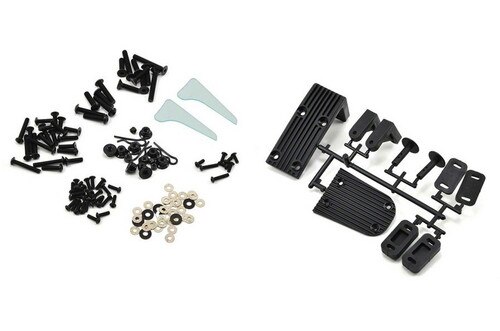

• Hardware Kit (not shown)
• Mounting Brackets
• Instruction Manual
• Kraken RC Decal Sheet

*Assembly of roll cage is required. Polycarbonate panels require trimming with Lexan scissors and Xacto Knife.
** Lexan panels are covered with overspray protective film.

Compatible Tune Pipes:

• DDM Dominator rear pipe (Both v1 and v2) - "Cool tape” (KRC70070, DDM Part number fd116) or pipe wraps are are required to avoid melting on the rear skid plate.
• DDM Dominator side pipe - Side pipe bracket will need to be fabricated by customer
• HPI Racing rear tuned pipe
• Stock Can Muffler
• VRC Pro Side mount (Side) - Side Pipe Bracket will need to be fabricated by customer

Compatible Engines:

SX-5 kit fits most standard engines including aftermarket modded ones with any of the pipes listed above. TWIN, RCMAX46 and SKOPOD engines are not supported due to larger pipe requirements.

Compatible CL1TSK Accessories:

• KRC70002 (Light Rack Kit) (DDM Part number TR647)
• KRC70004 ( Rear Spoiler Light Rack Kit) (DDM Part number TR650)
• KRC 70003 (Tire Rack Bracket) (DDM Part number TR649)
Note: KRC 70001 (Scale Front Bumper - Not Supported) (DDM Part number TR646- not supported)

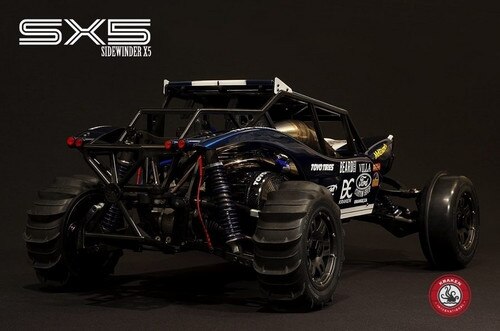

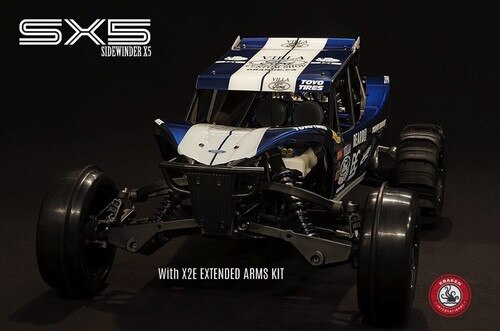

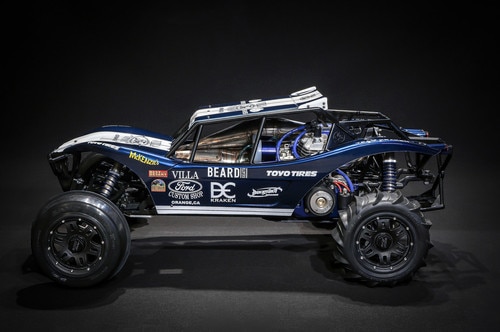

Please note that you are purchasing a kit that requires trimming and painting. Pictures on this page are actual project using this kit and is meant for illustration only. HPI Baja and related accessories shown on this page are not included.
