HPI Baja 5B SBK Kit 1/5 Gas RC Buggy

$749.00
SKU: HPI160323

ABOUT THIS PRODUCT:

HPI Baja 5B SBK Kit 1/5 Gas RC Buggy Payment For this item Required with PayPal

About

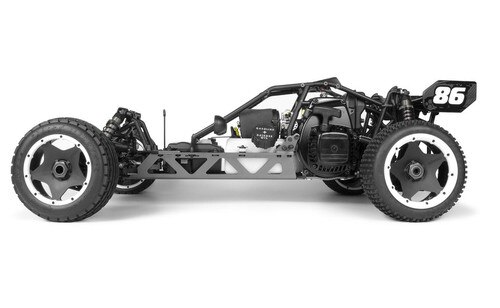

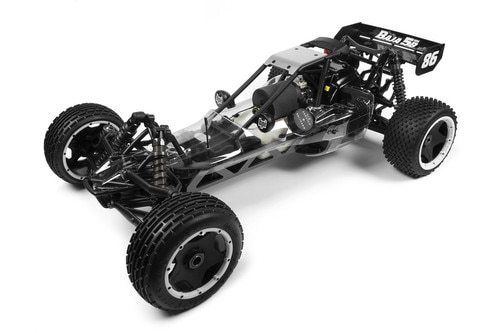

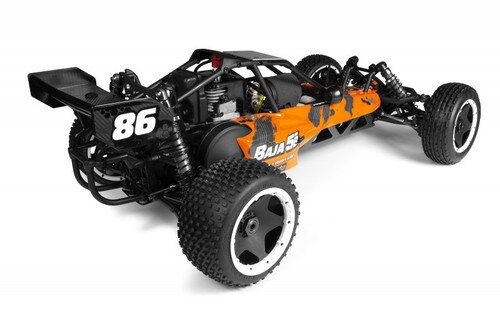

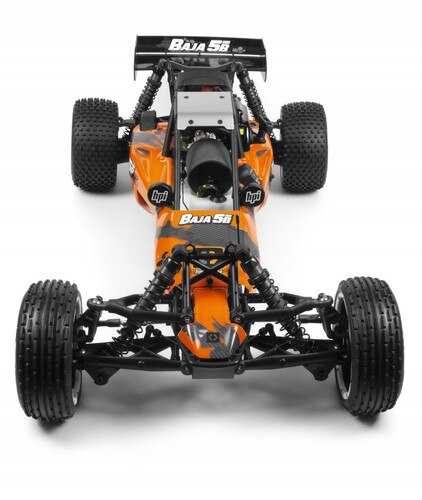

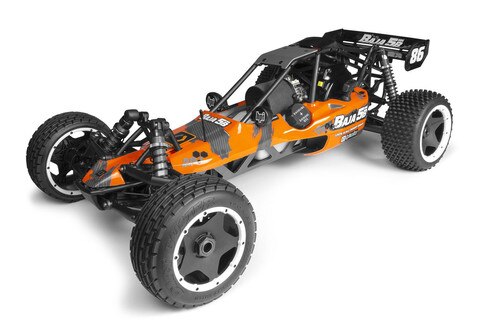

1/5 Scale Baja 5B 2WD Gas Powered Desert Buggy SBK with Clear Body (No Engine)

The one and only original HPI Baja 5B is BACK and ready for you to build from the ground up! The HPI SBK collection of Self Build Kits grows with the addition of not just one, but TWO 1/5th scale HPI kits! Now, YOU can build and own the legend! Experience the thrill and excitement of building a car which ends up being over 80cm (nearly 32 inches) long and weighing nearly 10kg (over 21 lb)! Just install your own engine and electronics as you build the HPI Baja 5B and you'll be ready for any adventure that comes your way! With extra-tough drivetrain parts like the viscous torque differential, super-durable composite spur gear with internal damping and all-metal drivetrain, the HPI Baja 5B is ready for your 23-32cc 2-stroke engine so you can experience the joy of gas-powered RC and up to 30-minute runtimes!

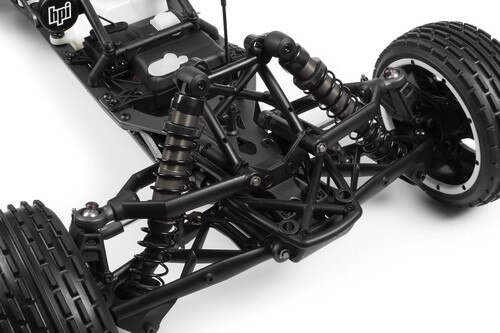

The HPI Baja 5B is also equipped with extra-big and super-tough suspension parts, featuring awesome HPI durability! With its expertly designed molded composite suspension plus extra-long adjustable HD shocks, and massive high impact nylon 3-piece beadlock wheels, the Baja 5B is ready for full-speed racing on any off-road circuit!

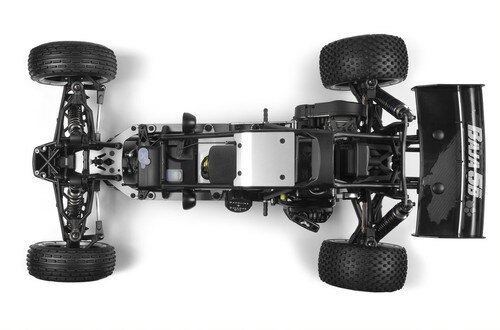

The 4mm thick 6061 aluminum monocoque chassis gives the HPI Baja 5B the classic desert racing buggy look. Precisely bent into shape for maximum strength, the chassis provides the mounting points for the engine and suspension, forming the backbone of the car. Precise steering is provided by a dual-bellcrank rack and cam-type servo saver. Aluminum parts are anodized in cool gunmetal and the classic Baja desert racer clear polycarbonate body is included in the SBK kit, ready for your custom racing scheme!

The tube roll cage is made of high impact nylon and topped with a real aluminum roof to carry on the classic looks. The roll cage is fully functional and protects the motor and internals from crash damage. The roll cage, radio box, body panels, wing, undertray and gear case are all mounted with fast access clips for easy maintenance.

The Baja 5B SBK Includes these Upgrades:

Front & Rear Sway Bars - Front and rear sway bars improves handling and gives quicker steering response over. Add more tuning possibilities with the #86618 Sway Bar Set!

Super Heavy Duty Drive Shaft - The 9mm thick Super Heavy Duty Drive Shafts and matching HD drivetrain parts add a serious amount of toughness to the drivetrain, and the rubber boots keep mud and grass from the outdrives and bearings. #104966

Rear Hub Carrier - The one-piece Rear Hub Carriers are easier to adjust, more durable, and are a lighter weight than the original multi-piece hub carriers. They also allow toe-in adjustments of 0, 1, 2, 3, and 4 degrees to help match the Baja's performance to track conditions. #104781

24mm Heavy Duty Front Hex Hub - Replacing the original C-clip front hex hub, the HD Front Hex Hub adds a serious amount of strength to the front suspension and dramatically improves the durability of the HPI Baja 5B. # 105612





Details

Suggested equipment specifications:

Engine & Exhaust: 23-34cc engine with standard RC large scale mounting points with box or tuned pipe exhaust (DDM Suggest Zenoah G290RC and G320RC engines). For exhaust mufflers consider the CY High flow muffler (15483-CY) for tuned pipes consider DDM Dominator pipes, Bartolone, and Victory RC tuned pipes
Radio system: Minimum 2-channel radio & transmitter set with voltage & signal failsafe (DDM suggest 3+ channels and ignition kill switches such as the MOD RC switch or Dynamite RC kill switch You will also need an on/off switch.
Steering servo: Minimum 25kg/cm or 486oz-in rating with 75mm mounting (large scale standard size) DDM suggest Savox 0235 or 0236 servos. The Hitec 5765MH is also a good choice.
Throttle servo: Minimum 7kg/cm or 100oz-in rating (1/10th standard size) DDM suggests the Hitec D645MW at a minimum or the Savox 1210-SG
Receiver battery: 6V hump style (2+3) pack with plug to fit receiver. DDM suggests the DDM 5000 NiMH battery if you want to use a LiPo DDM has a 4000mah 2S LiPo that can be fitted into the receiver box.
Battery charger: charger suitable for chosen receiver battery DDM suggest the Hitec RDX1 or Imax B6AC Pro

Features

  • Unassembled 1/5th scale Off-Road Buggy ready for your 23-32cc RC engine and electronics
  • Aircraft aluminum 6061 T6 monocoque chassis with low CG and adjustable HD shock absorbers on long travel suspension for superior handling
  • Viscous torque oil-filled gear differential
  • All-terrain tires and beadlock wheels with metal insert hubs
  • Quick access to all critical maintenance points
  • Dual bellcrank steering and cam type servo saver
  • Aluminum rear shock tower and hard plastic skid plates
  • Gunmetal anodizing
  • Full set of rubber-sealed ball bearings
