SLITZELL CONCEPTS HDA CARB LINKAGE
The Slitzell Concepts HDA Walbro carburetor linkage allows one to use several different model HDA carbs(223,48,77, etc) on their Go-ped models that use a gp460 or G62 engine. The throttle cable barrel adjuster mounts directly to the carb itself allowing more cable route options when mounting the carburetor. Allows use of the multi-mount position on the Slitzell Concepts 460/g62 reeds as the stock throttle linkage is no longer used. The following is included:
- Linkage Hardware

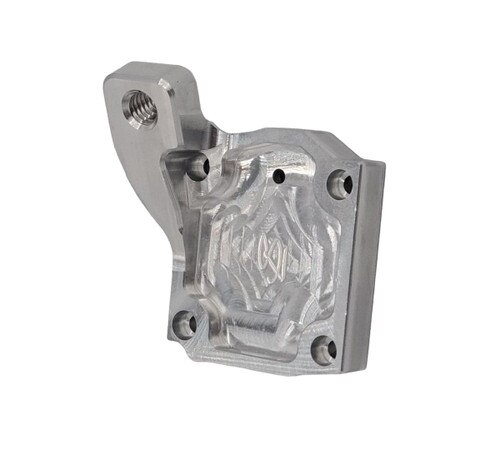

- Billet 6061 Carb Linkage
NOTE

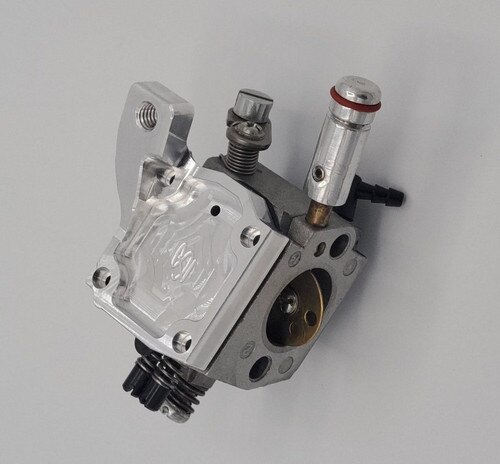

-Linkage shown mounted on HDA-223 Carb in photo
- If using on a HDA-223 Carb, the stock primer bubble must be removed, and either a single line tank or plugging of your stock tank return line is needed.
-For use on the HDA-48/77 series carbs and there is not an existing swivel/swivel arm(like photo) you must swap the throttle shaft from a 223 carb or flip throttle shaft and tap for the swivel arm/swivel
